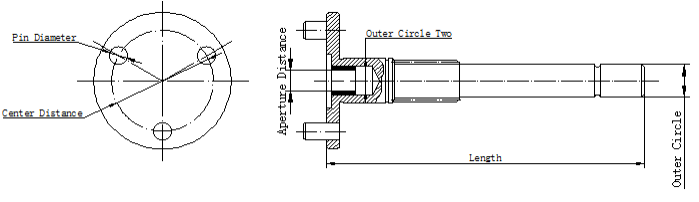

| 产品名称 | 长度 | 外圆一 | 外圆二 | 花键数 | 孔直径 | 中心距 | 销子直径 | 旋向 |
| Product name | LENGTH | Outer Circle | Outer Circle Two | Spline Number | Aperture Diameter | Center Distance | Pin Diameter | Rotation Direction |
| SND12A01-01 | 106.4 | 11 | 15 | 10 | 7 | 34 | 6 | CW |
| SHI12C22-01 | 86.5 | 12.5 | 18 | 10 | 6.7 | 28.3 | 6 | CW |
| SMI12C169-02-101 | 102.5 | 10 | 17.5 | 8 | 8 | 30.1 | 8 | CM |
| SMI12A38-02-101 | 107 | 10 | 17.5 | 8 | 8 | 30.1 | 8 | CCW |
| SMI12C175-01-101 | 89.5 | 10 | 17.5 | 8 | 8 | 30.1 | 8 | CW |
| ND-NDPWG-004-205 | 103.5 | 12 | 18 | 10 | 8 | 34.2 | 6 | CW |
| ND-X-001-206 | 104.2 | 10 | 18 | 10 | 7 | 31.8 | 6 | CW |
| ND-X-012-206 | 96 | 10 | 18 | 10 | 7 | 31.8 | 6 | CW |
